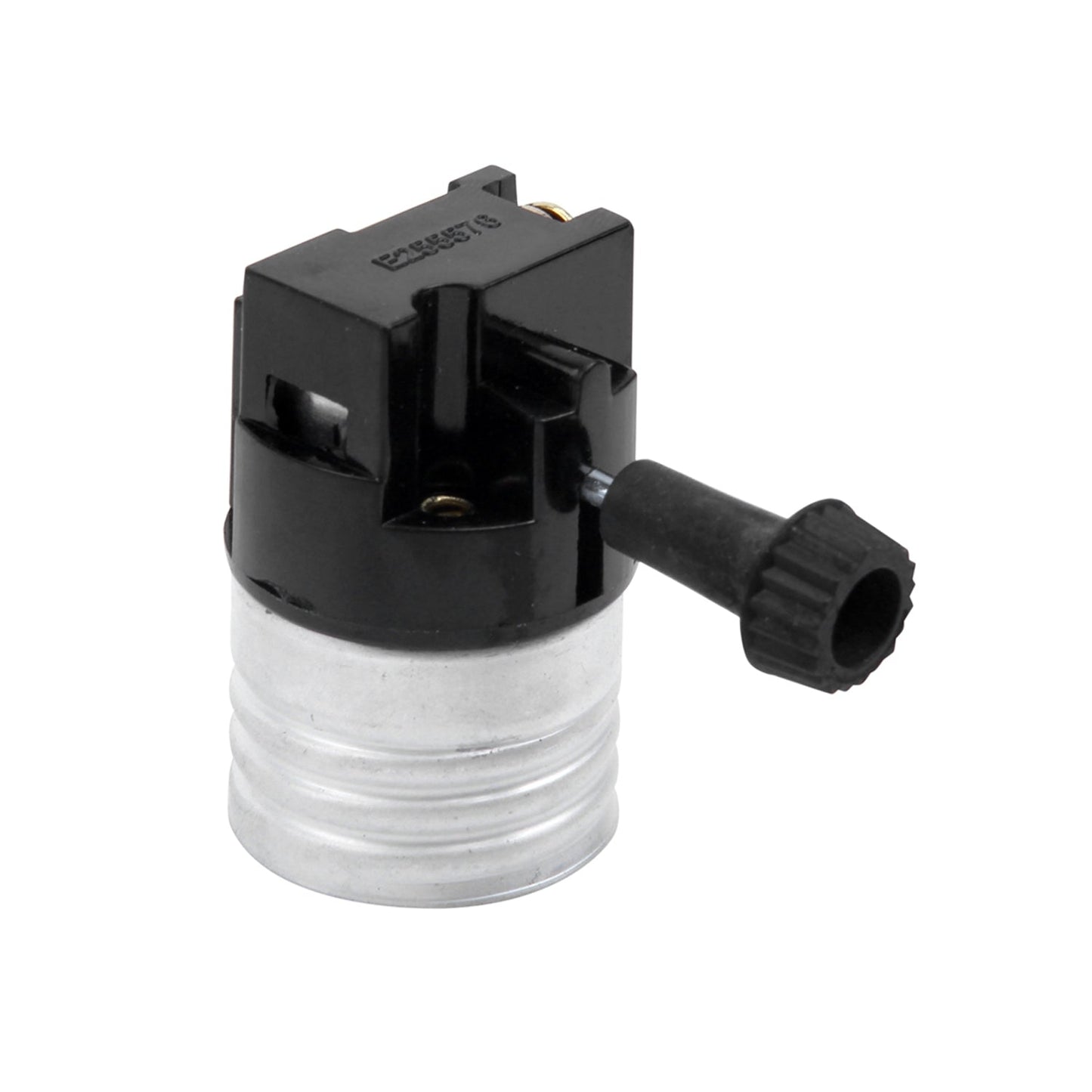

3 Way Socket Replacement for lamp Removeable Turn Knob

PRODUCT CODE - 6923895189695

  • Sale
  • Regular price £2.99 Ex VAT


Removeable Turn Knob, 2-Circuit, for 3-Way 2-Filament Lamps

Features:

  • Tired of replacing an entire lamp or over paying for a quick socket replacement, this easy to install socket is what your'e looking for!
  • Wattage Rating: 250W 3 way turn sequence LO-MED-HI-OFF, Compatible with three-way light bulbs, or one-way Light bulbs. Can convert previous 1 way lamp to 3 way socket, just switch bulbs to 3 way after install.
  • Medium base (E26) interior only, shell Incandescent lamp holder, removable turn knob, 2-circuit, for 3-way 2-filament lamps
  • SAFE Industry standard socket- Our sockets are UL Listed and rated for up to 250 Watts. This style socket is used everyday for lamp repair by your local business, they are reliable and top quality.
Easy 5 step process to install
  • On the right side of socket housing by the switch (Press) into housing to release outer shell, in some cases you will need to press back of housing as well. (Use a flat head screw driver)
  • Remove inner socket from housing DO NOT remove cardboard insulation.
    With a flat head or Philips screw driver unscrew both bottom screws with the copper wire wrapped around them.
  • Keep copper wire tightly wrapped together and wrap them around replacement ESC socket bottom screws and tighten them down. There is no difference between screws don't worry about interchanging wires on them.
  • Press inner socket firmly into place in the earlier removed housing, screws with wire must be pressed all the way inside and should not be showing, then push housing and socket back into place on the original base that it was earlier removed from.
Package includes:
  • 1Pc x Lamp Part only.

    Note:

    *Earth connection not required for this set as there is no metal part on this set and there is no terminal at the holder to connect the earth cable aswell as it is not required.

    • Due to the light and screen difference, the items color may be slightly different from the pictures.
    • Please allow 1-2 cm differences due to manual measurement.
