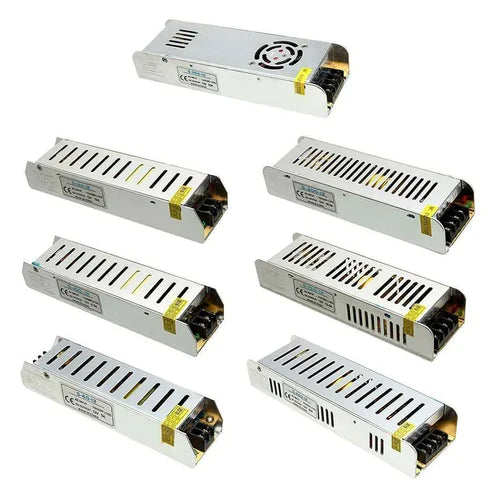

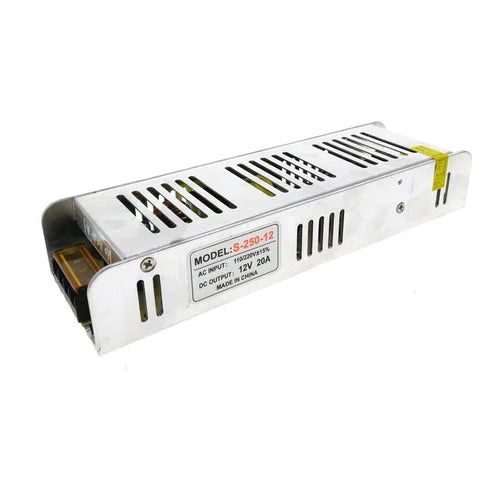

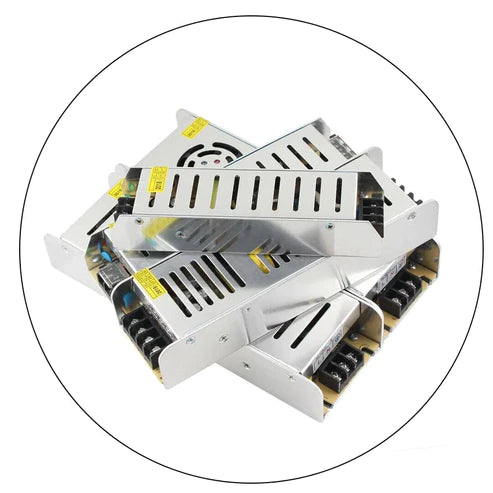

Slim LED Driver DC12V IP20 60w to 360w Constant Voltage Transformer

4 total reviews

Regular price
£5.59 GBP   EXCL .VAT
Regular price
£0.00 GBP
Sale price
£5.59 GBP
-0%
Power: 60W

Estimate Delivery

  • Standard delivery times:2-4 days(UK),7-15 days(Europe).

  • Express Delivery Times : Within Two days

Free Shipping

  • UK free Shipping on order over £50

  • UK free Express Shipping on order over £100

Discounts

  • 10% OFF for your 1st Order | Use Code: b2bes100@

  • 15% OFF for More than £100|Use Code: CUS_OFFER_15

use these codes at the checkout
Summer Collection Offer
Slim LED Driver DC12V IP20 60w to 360w Constant Voltage Transformer
Slim LED Driver DC12V IP20 60w to 360w Constant Voltage Transformer

You may also like

  • Description
  • Return policy
  • Shipping & Return

Descriptions

  • The Slim LED Driver DC12V is a reliable constant voltage transformer specifically designed for a power range of 60W to 360W and IP20 Rated.
  •  It ensures stable and consistent voltage output for your various LED lighting setups.
  • Upgrade your lighting setup with this quality LED driver to achieve consistent and efficient lighting in your space.
  • It is suitable for a wide range of LED lighting fixtures.

Technical information:

  • Item Type: Slim LED Driver
  • Material: Aluminum Alloy
  • Power: 60w to 360w
  • Output Voltage: DC 12V
  • Waterproof Rating: Non-Waterproof
  • Indoor/outdoor usage: Indoor
  • Dimmable: No
  • IP Rating: IP20
  • Working Temperature: -10~+60oc
  • Storage Temperature: -20~+85oc
  • Short Circuit Protection: Yes
  • Over Voltage Protection: Yes
  • Over current Protection: Yes
  • Over Temperature Protection: Yes
  • Frequency: 50Hz-60Hz
  • Average Life (hrs): 50000 Hours
  • Certificate: CE & RoHS certification
  • Warranty: 3 year
  • LED driver transformer suitable for: LED strips, LED modules, LED bulbs, Low-voltage lighting systems, Automotive LED lights, Small motors, Fans, Sensors, Security cameras, Medical equipment, AD Light box
  • Refer to the table for detailed technical information. (Power: 60w to 360w, Amp: 6A - 20A, Input Voltage: AC 100V–220V)

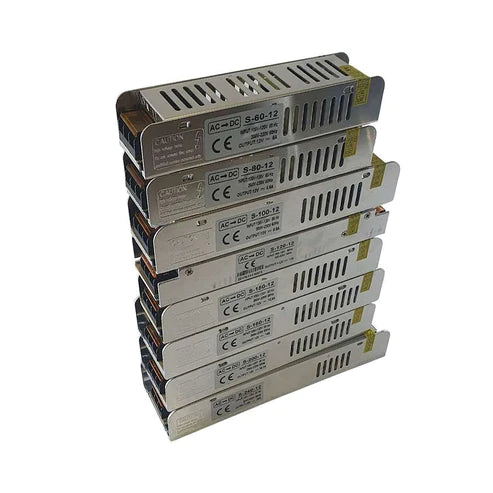

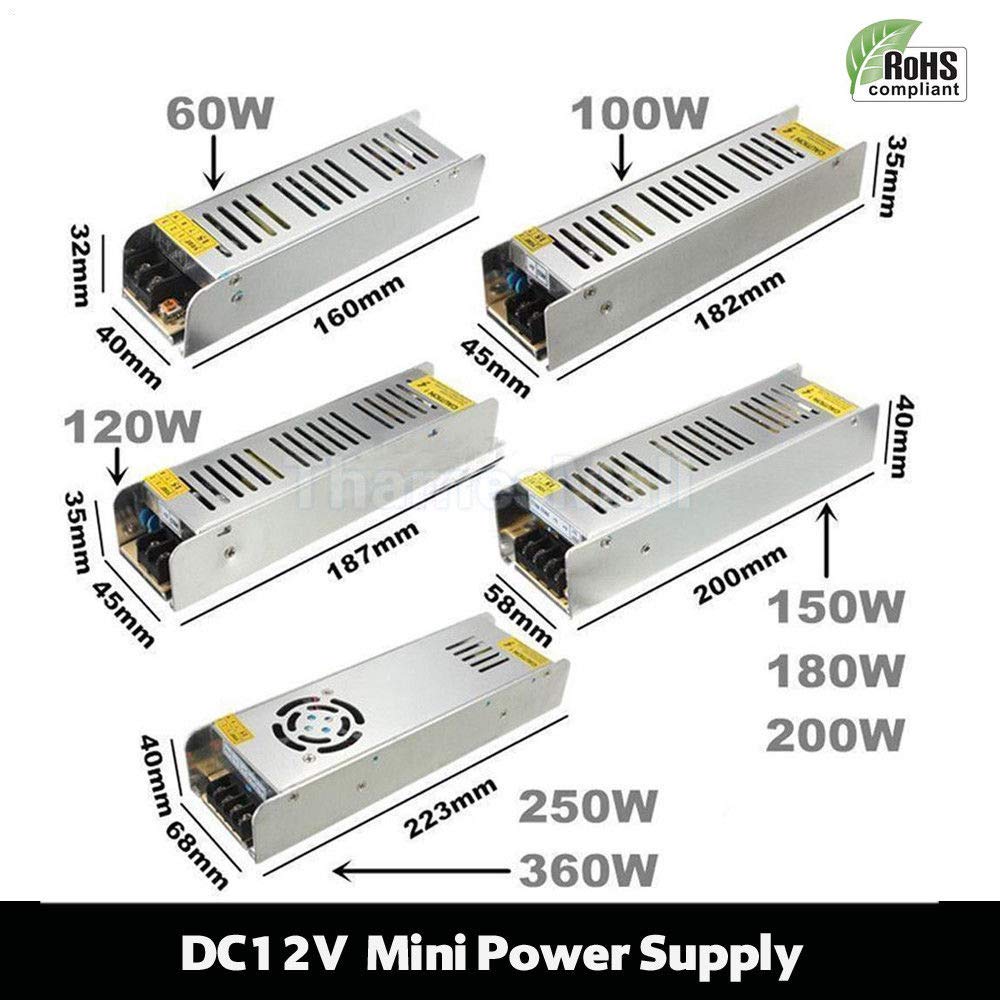

Power Input Voltage Output Current Length Width Height Fan No of output (in pairs) Weight Regulated Switching

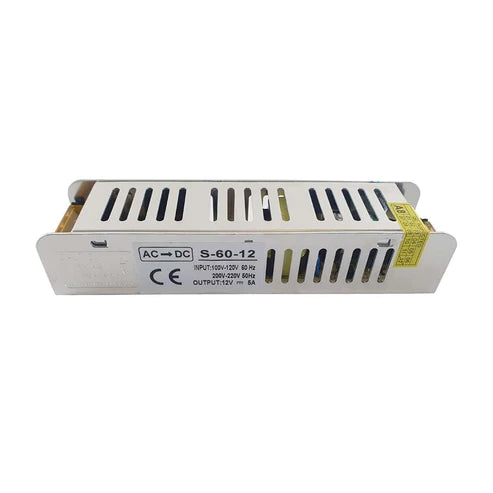

60W 100-220V 6A 160mm 40mm 32mm No 1 145g No

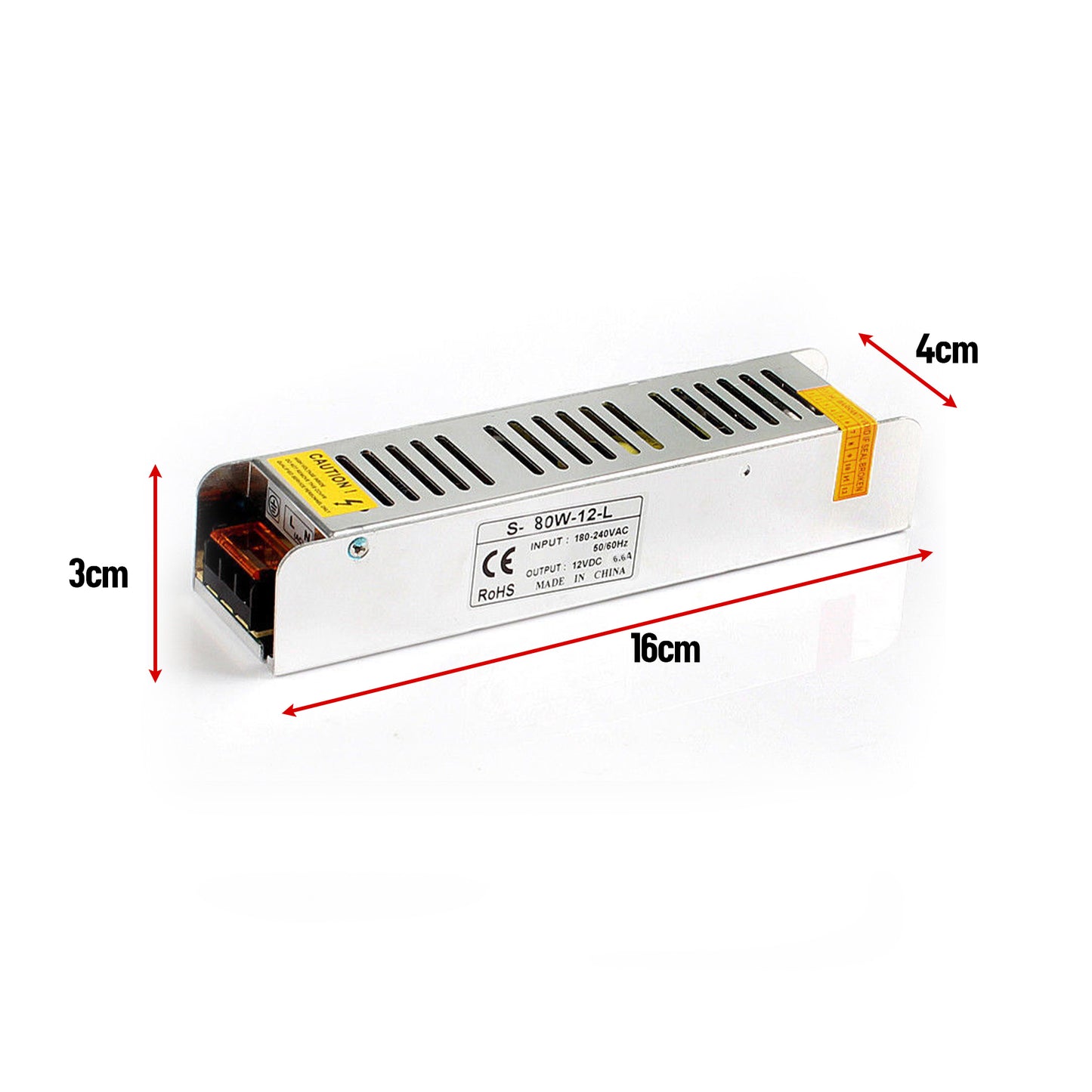

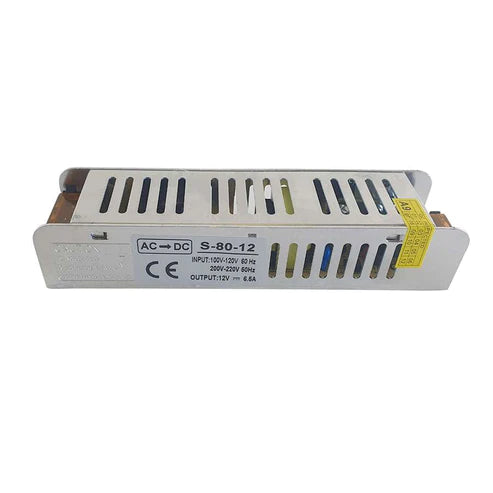

80W 100-220V 6.6A 160mm 40mm 32mm No 1 150g No

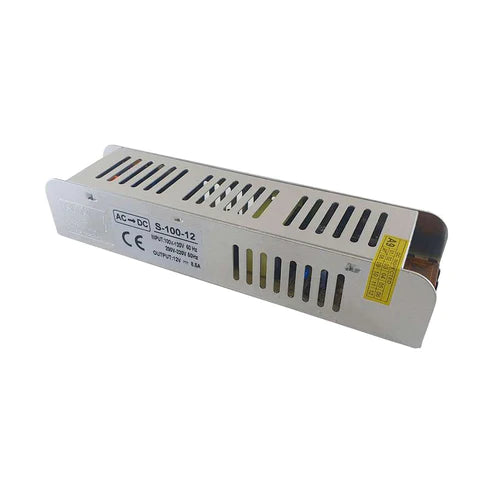

100W 100-220V 8.5A 190mm 46mm 36mm No 1 200g No

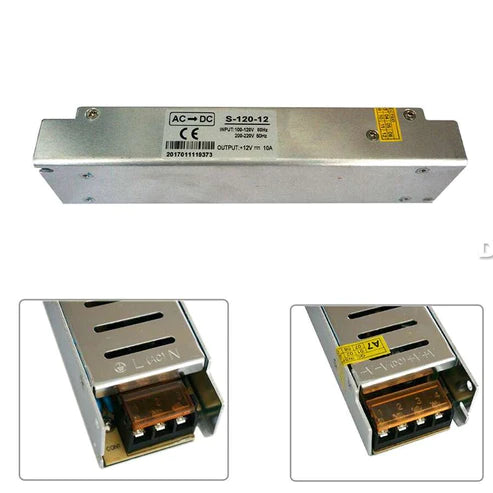

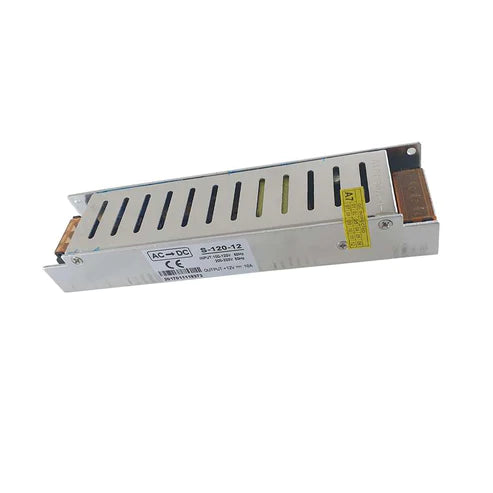

120W 100-220V 10A 190mm 46mm 36mm No 1 225g No

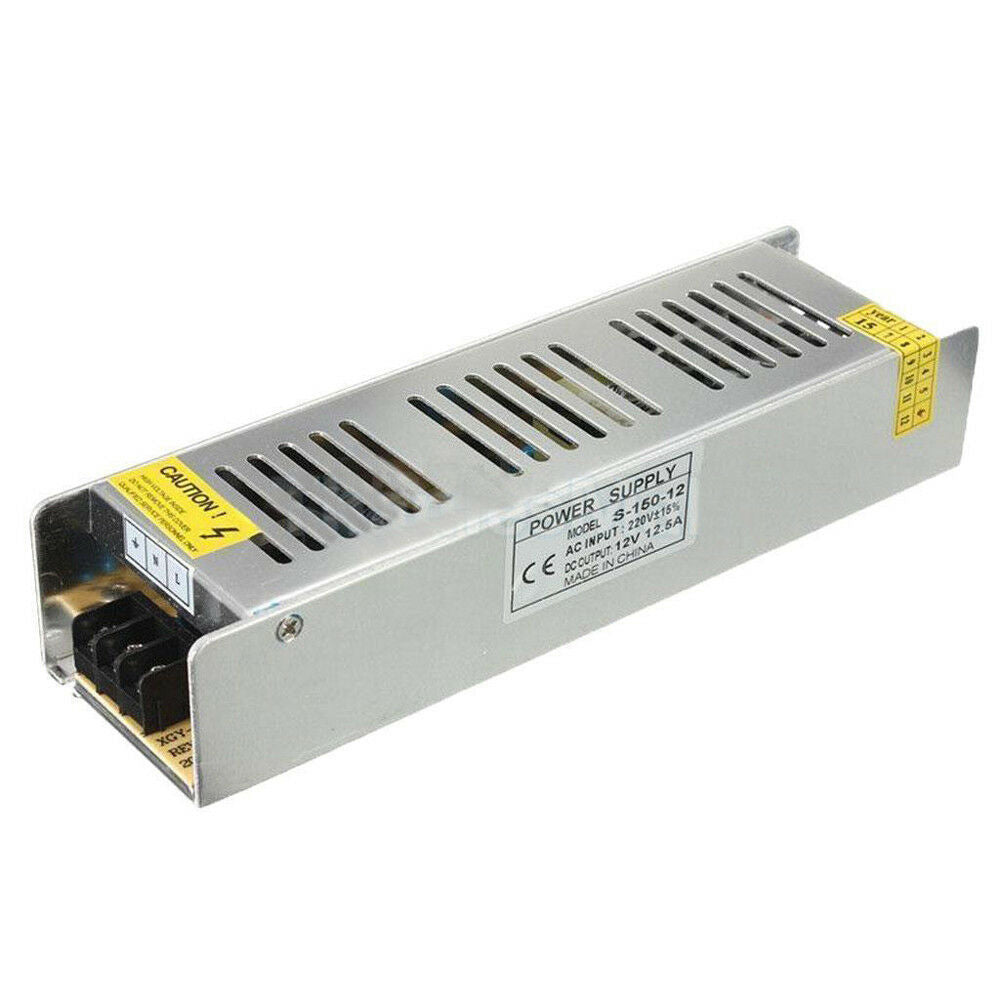

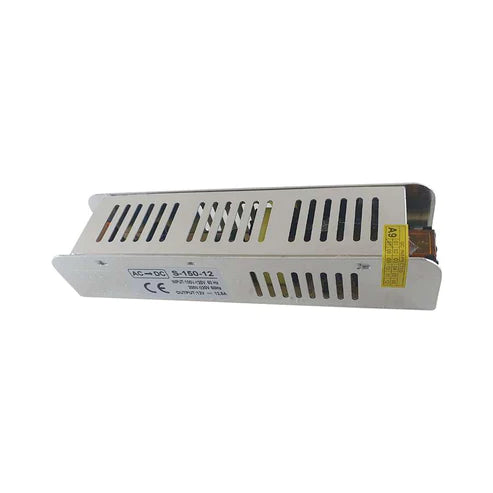

150W 100-220V 12.5A 190mm 46mm 36mm No 1 220g No

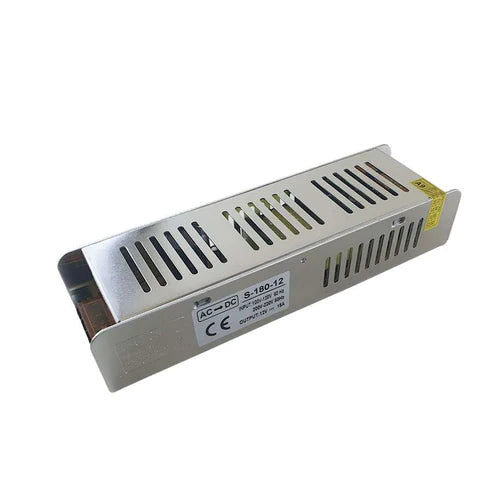

180W 100-220V 15A 200mm 60mm 40mm No 2 325g No

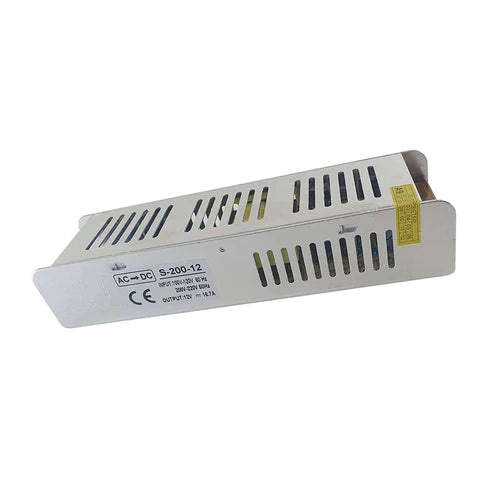

200W 100-220V 16.7A 200mm 60mm 40mm No 2 325g No

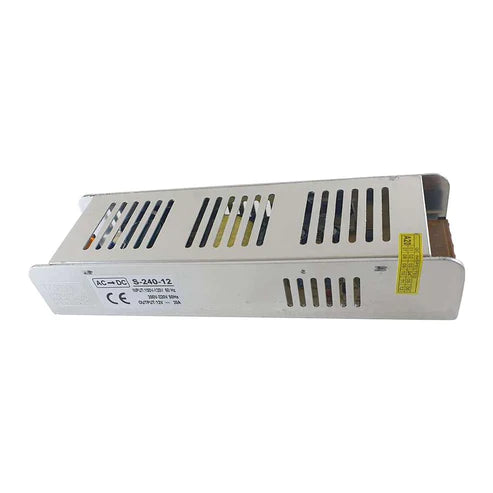

240W 100-220V 20A 224mm 69mm 40mm No 2 400g No

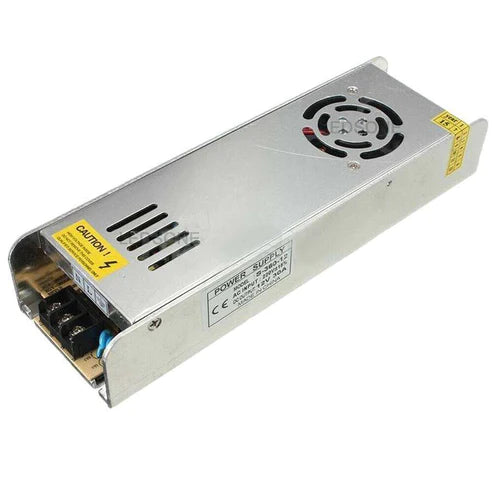

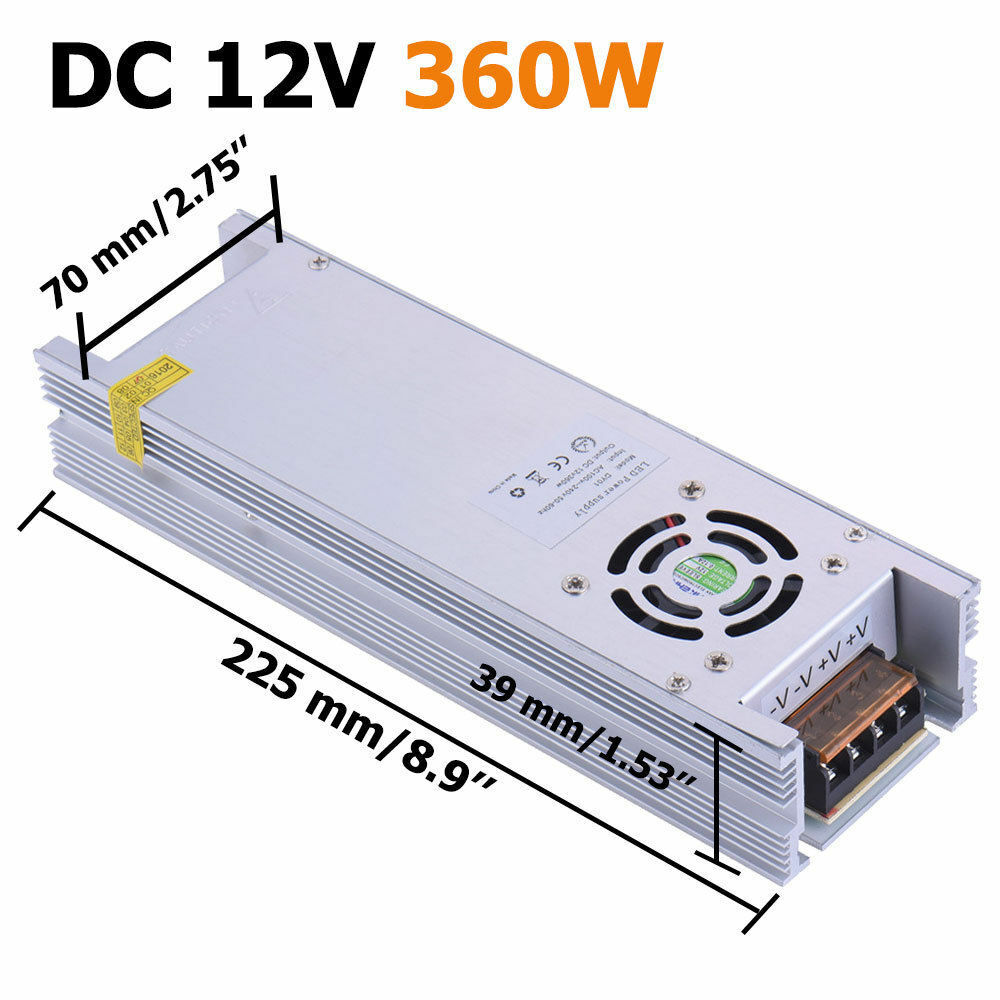

360W 100-220V 30A 224mm 69mm 40mm No 2 400g No



Note

  • Always choose a power supply that is at least 25% higher than or above the required wattage. For example, if your LED strip requires 75w, you should use a 100w or above LED transformer.
  • It is always advisable to seek the help of an electrically competent person if you are not familiar with electricity or electrical systems
