DC 24V 10W - 200W IP67 Waterproof LED Transformer Driver Power Supply

Description

Description

With the functions of overvoltage protection, short circuit protection and overload protection
Constant voltage output, to ensure the stability of the power supply
With the anti-interference function, to ensure the long-life LED lamps
Waterproof IP67, for outdoor use.

Applications:

Adaptor designed specifically for our LED Lamp or strip light. Its high quality and new power supply for 3825 5050 5630 3014 2835 7020 led strip Light, Wireless Router, ADSL Cats, HUB, Switches, Security Cameras. Audio/Video Power Supply etc, it is easy connection and simplicity to use.

DC 24V Products Specification:

Type：DC 24V
Input Voltage: AC110-260V 50-60HZ
Output Voltage: DC 24V±0.5
Shell material: Aluminum Alloys
Working Temperature: -25-65 ℃
Efficiency: ≥ 80%
Waterproof: IP67 Can be used in shallow water

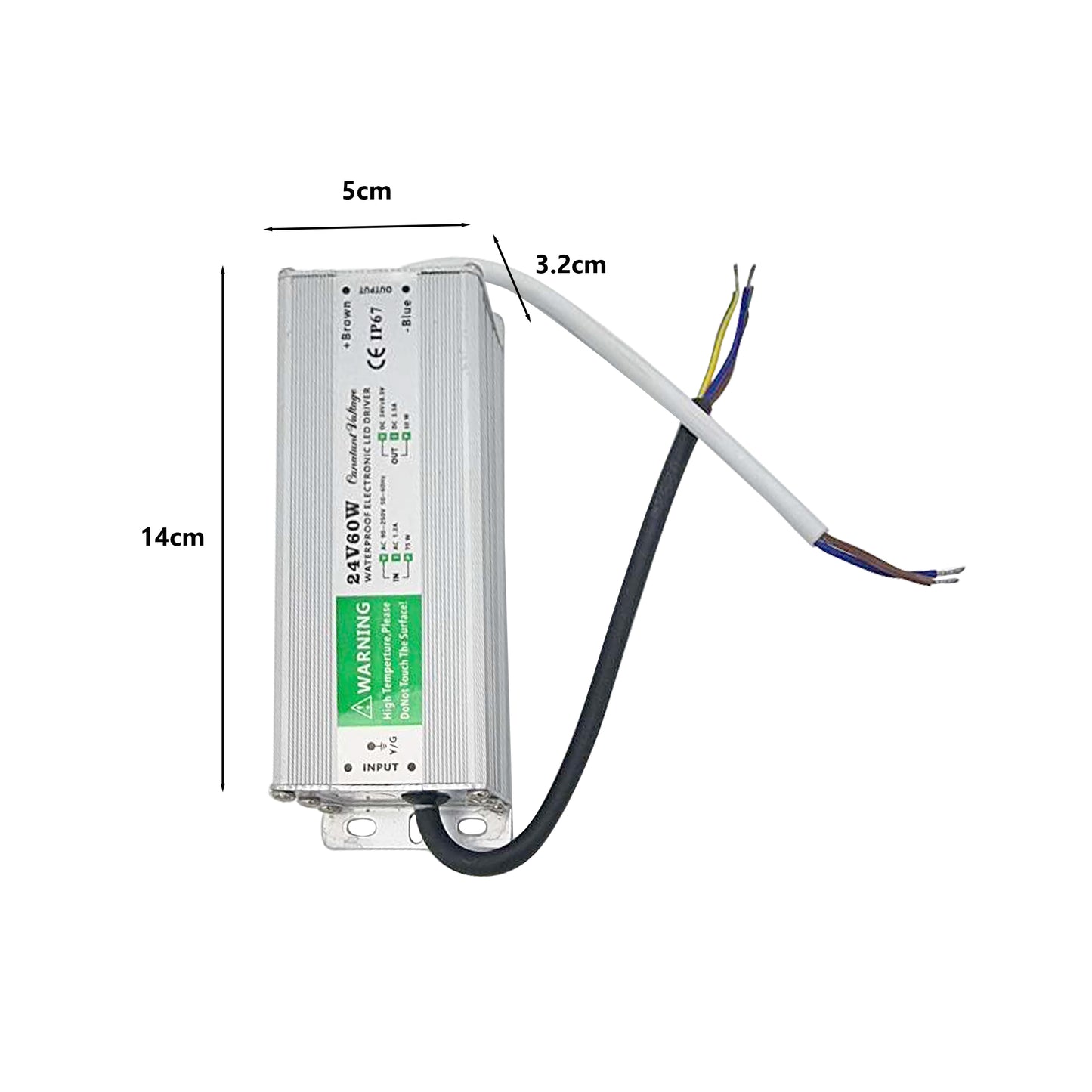

DC12V IP67	Length	Length without Bracket	Width	Height	Weight
DC24V 10W	117mm	96mm	29mm	20mm	150g
DC 24V24W	200mm	187mm	30mm	20mm	150g
DC24V 30W	200mm	187mm	30mm	20mm	180g
DC24V 36W	200mm	187mm	30mm	20mm	250g
DC24V 45W	208mm	187mm	35mm	2 4mm	250g
DC24V 50W	180mm	173mm	45mm	34mm	211g
DC24V 60W	177mm	153mm	70mm	45mm	235g
DC24V 80W	177mm	153mm	70mm	40mm	460g
DC24V 100W	208mm	182mm	70mm	45mm	665g
DC24V 120W	208mm	182mm	70mm	45mm	700g
DC24V 150W	220mm	195mm	70mm	45mm	750g
