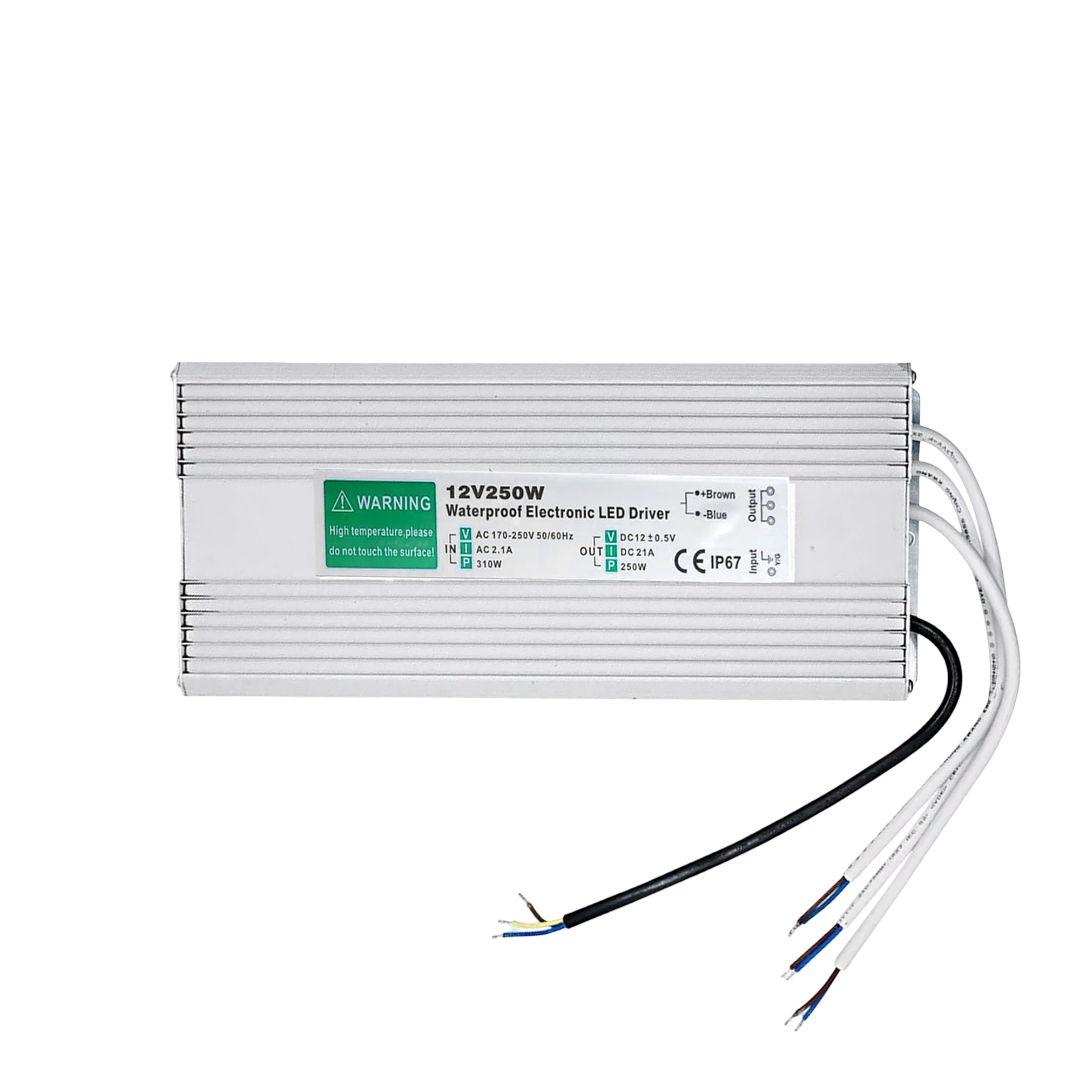

Waterproof IP67 LED Driver Switching Power Supply LED Transformers Power Supply Converter Adapter for Outdoor Use 12V
- 12V power transformer provides a safe and effective way for users to tap into and utilize 220-240 Volt AC power sources
- Waterproof LED Driver Transformer is a reliable power source for LED strips and any other devices
- Its waterproof ability is endorsed by a complete sealed Chrome Aluminum alloy case
- The transformer features an IP67 rated waterproof design, making it suitable for indoor or outdoor use
- Includes integral short circuit and overload protection that will shut down the unit in case of faults and overloads to protect the unit and connected equipment from damage
- The transformer case is made of pure metal with a built-in fuse, it's anti-collision, anti-shock, anti-thunder
Features:
- Constant voltage style power supply
- Universal AC input/Full range Cooling by free air convection
- Fully encapsulated with IP67 level 100% full load burn-in test
- Small volume, low weight, and high efficiency
- Protections for short circuit, overload, over-voltage, and over-temperature
Product Specifications:
- Input: 220-240V AC 50/60HZ
- Output: 12V DC
- Wattage: 10W - 260W
- Working Temperature: -10℃ to +60℃
- Waterproof: IP67
- Input Efficiency: 85%
- Waterproof: IP67 Can be used in shallow water
Power |
Input Voltage |
Output Current |
Length |
Width |
Height |
No of output (in pairs) |
Weight |
10W |
90-250V |
0.85A |
103mm |
30mm |
20mm |
1 |
100g |
15W |
90-250V |
1.25A |
215mm |
65mm |
24mm |
1 |
150g |
20W |
90-250V |
1.6A |
181mm |
29mm |
21mm |
1 |
175g |
24W |
110-240V |
2A |
181mm |
29mm |
21mm |
1 |
175g |
30W |
90-250V |
2.5A |
220mm |
29mm |
21mm |
1 |
250g |
36W |
90-250V |
3A |
220mm |
29mm |
21mm |
1 |
215g |
45W |
90-250V |
3.75A |
310mm |
37mm |
25mm |
1 |
310g |
50W |
90-250V |
4.16A |
210mm |
37mm |
25mm |
1 |
288g |
60W |
90-250V |
5A |
186mm |
37mm |
35mm |
1 |
415g |
60W OL2 |
90-250V |
5A |
175mm |
67mm |
44mm |
1 |
600g |
80W |
90-250V |
6.6A |
175mm |
67mm |
44mm |
1 |
600g |
100W |
90-250V |
8.33A |
210mm |
70mm |
42mm |
1 |
835g |

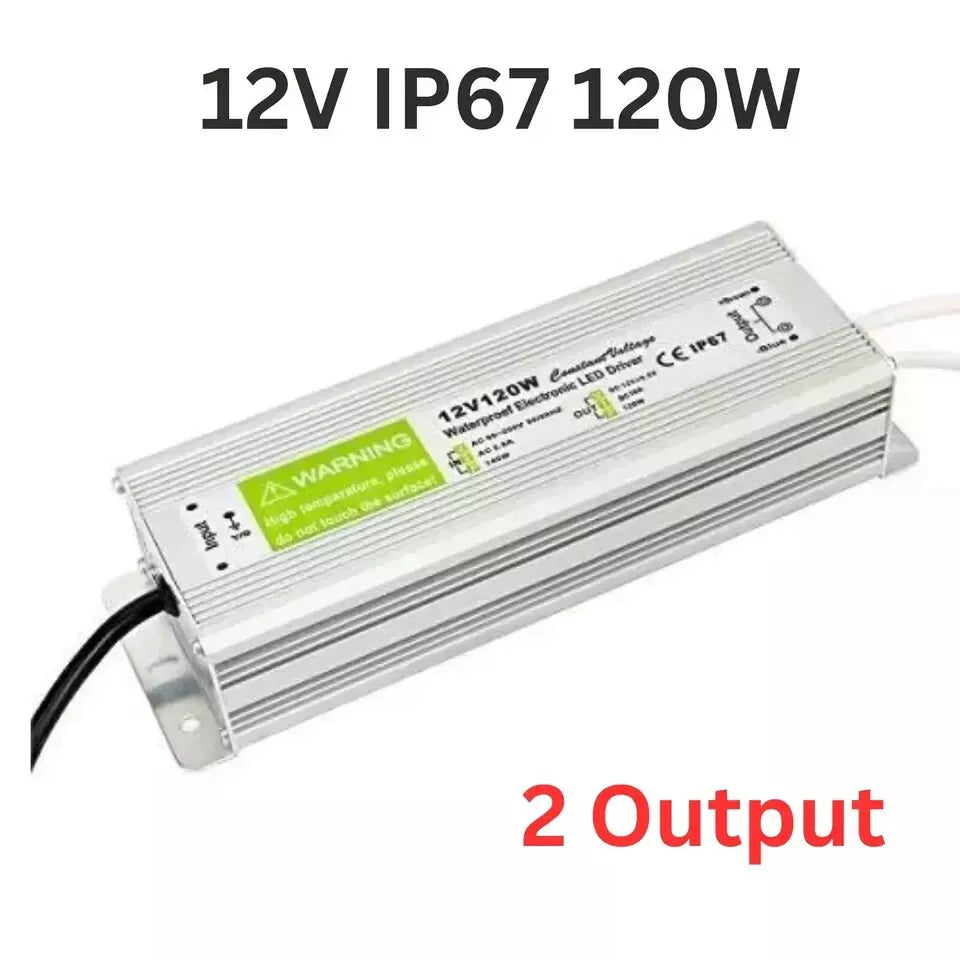

120W |
170-250V |
10A |
186mm |
66m |
42mm |
1 |
840g |
150W |
90-250V |
12.5A |
230mm |
66m |
44mm |
1 |
835g |
200W |
170-250V |
16.5A |
220mm |
120mm |
65mm |
1 |
2350g |
250W |
170-250V |
20.83A |
255mm |
120mm |
54mm |
1 |
2425g |
300W |
170-250V |
25A |
286mm |
120mm |
52mm |
1 |
2570g |
350W |
170-250V |
30A |
286mm |
120mm |
52mm |
1 |
2715g |
10W |
90-250V |
0.85A |
103mm |
30mm |
20mm |
1 |
100g |
Note:
- Always choose a power supply that is at least 25% higher than the required wattage. For example, if your LED strip requires 75w, you should use a 100w or above transformer.
- It is always advisable to seek the help of an electrically competent person if you are not familiar with electricity or electrical systems.
Warnings:
- Don't open or modify the led power supply.
- Please leave children, kids far away from high voltage power source.
- Please use it under a professional electrician's guide.
