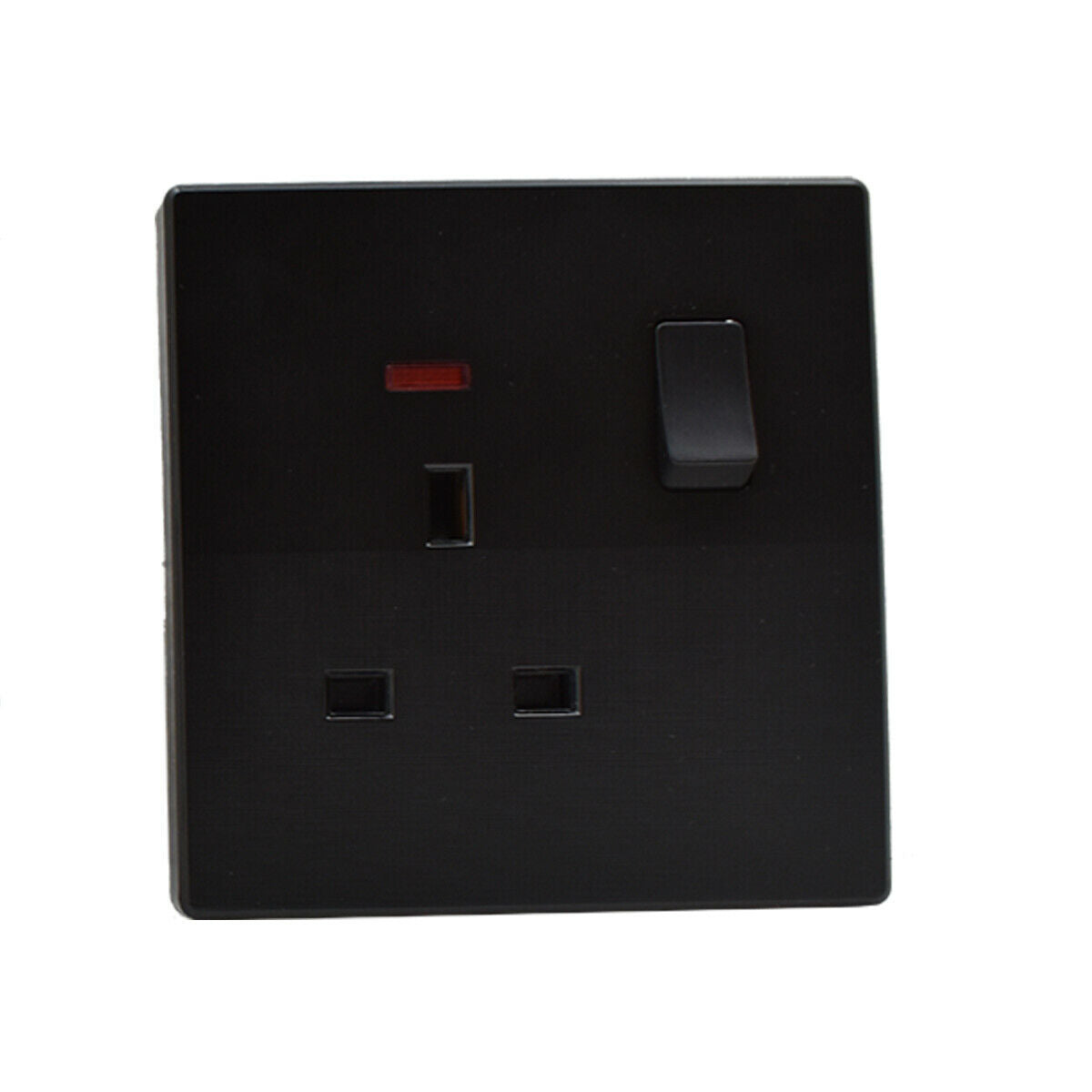

Black single socket

$9.00

Description Features: Screwless Flat plate Sockets Certified in BS EN1363, BS EN 5733, BS EN 60950-1 CE. Design manufactured under ISO9901 Made by fireproof PC material, high temperature resistant and safe to use, the conductive carrier is used thick copper for good conductivity. A High Quality 13 Amp Double Switched...

Real time Visitor right now

Black single socket

Black single socket

Description

Features:

  • Screwless Flat plate Sockets
  • Certified in BS EN1363, BS EN 5733, BS EN 60950-1 CE. Design manufactured under ISO9901
  • Made by fireproof PC material, high temperature resistant and safe to use, the conductive carrier is used thick copper for good conductivity.
  • A High Quality 13 Amp Double Switched Wall Socket that Fits into Standard Back Boxes
  • item is BS5733 Approved and RoHS Compliant

Specifications:

  • Made by fireproof PC material, high temperature resistant and safe use, the conductive carrier is used thick copper for good conductivity.
  • British Standard Certified BSEN, ISO9001CE Approved
  • Requires a minimum of 25 mm deep back box
  • Rated Voltage: 110V~240V
  • Light switches and 1Gang Sockets Frame Size: 86mm x 86mm
  • Double Gang Sockets Frame Size: 172mm x 86mm
  • Will Fit any Standard UK Light Switch Socket
  • Screwless design;

Important Installation Instructions:

  • Firstly, ensure you isolate the mains power supply and remove the fuse in the fuse box or switch off the circuit breaker in the consumer unit.
  • Pass the cable through the entry holes and connect to the appropriate terminal. If an Earth loop connection is required, use the additional earth terminal block located in the backbox.
  • Re-connect the mains supply when the installation is correctly completed. Before use, we recommend that a socket test is carried out.

Package includes:

  • 1 x 13 A Socket

Delivery times can vary depending on the destination location. We would advise against booking an Electrician or fitter until you have received all items in satisfactory condition.
