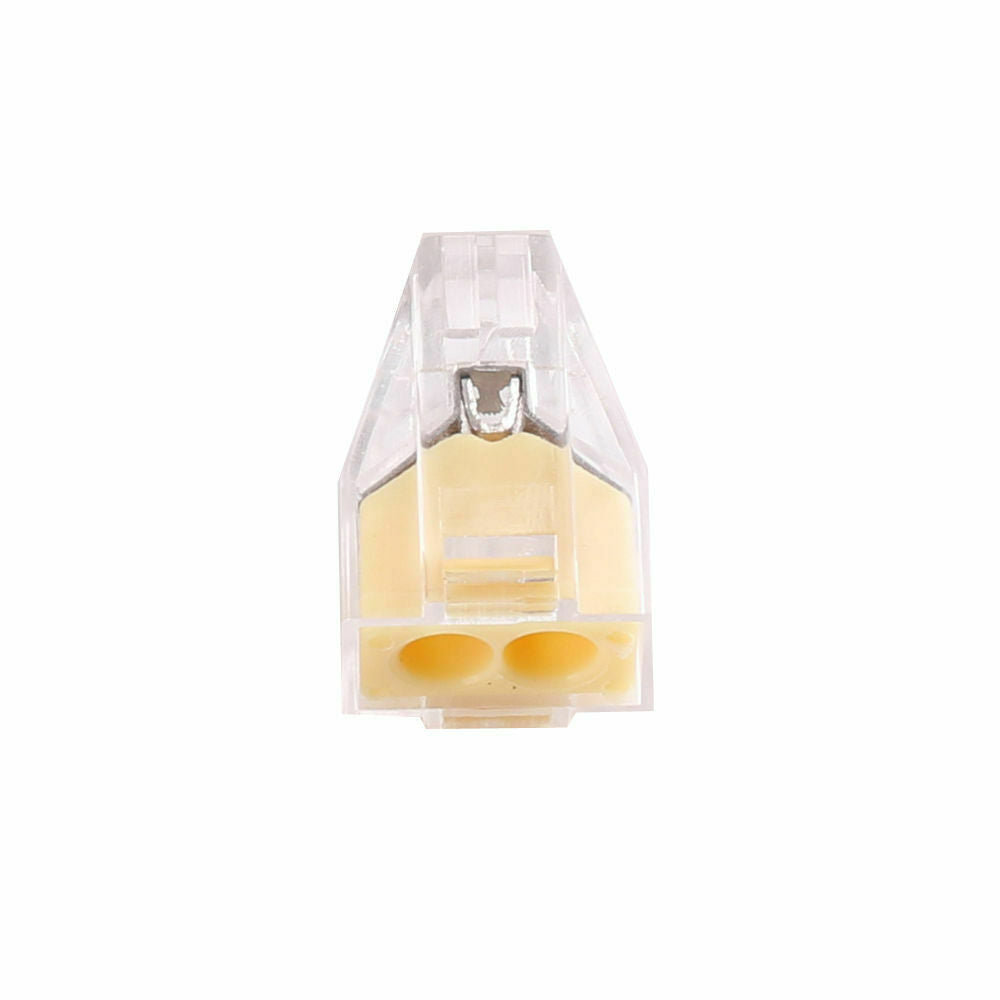

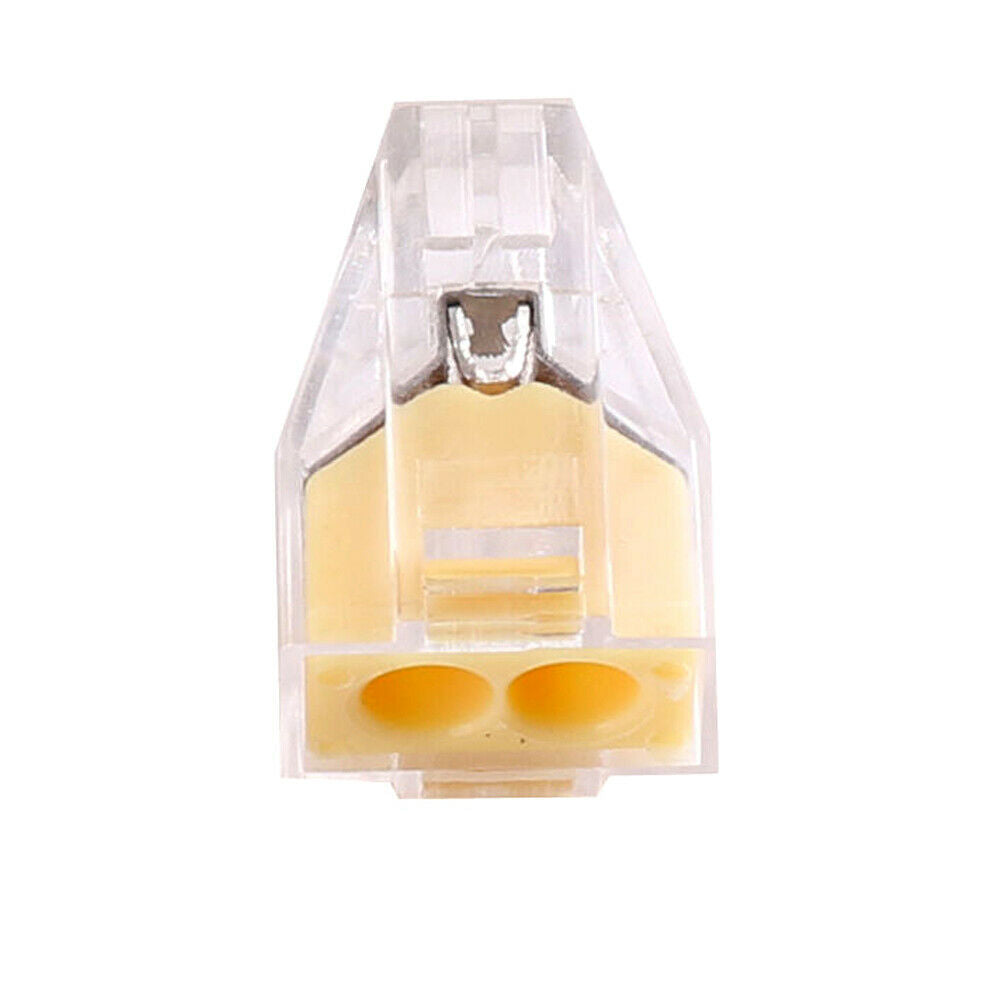

2-Way Push-Wire Connector 0.75–2.5mm² 400V 24A – Reusable Terminal Block

£1.19 GBP   EXCL .VAT
£1.19 GBP
-0%
Only 117 items in stock! Out of stock!

Available!!!

  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Estimate Delivery

  • Standard delivery times:2-4 days(UK),7-15 days(Europe).

  • Express Delivery Times : Within Two days

Free Shipping

  • UK free Shipping on order over £100

  • UK free Express Shipping on order over £200

Discounts

  • 10% OFF for your 1st Order | Use Code: b2bes100@

  • 15% OFF for More than £100|Use Code: CUS_OFFER_15

use these codes at the checkout
2-Way Push-Wire Connector 0.75–2.5mm² 400V 24A – Reusable Terminal Block
2-Way Push-Wire Connector 0.75–2.5mm² 400V 24A – Reusable Terminal Block

£1.19
  • Description
  • Shipping & Return
  • Return policy

Description:

  • These push wire connectors are a great alternative to traditional wire nuts. They provide a fast, secure, and reliable connection for electrical wiring projects.
  • Rated for 400V at 24A and suitable for 18-12 AWG solid or stranded copper conductors.
  • Common splice connection for up to 6 solid or stranded wires.
  • The PUSH WIRE connection clamps stranded conductors with cross-sections up to 10 AWG.
  • Save up to 50% wiring time compared to traditional twist-type connectors.
  • Enter the No-Twist Zone and simplify your next wiring project with the original push wire connector.
  • Simply strip the conductor to 12mm (0.47 inch) using the built-in strip-length gauge, then insert the stripped conductor firmly into the connector.
  • The transparent housing allows easy visual inspection to confirm complete wire insertion.
  • Designed to securely clamp both solid and stranded copper conductors.
  • Conductor cross-section: 0.75 - 2.5mm² solid hard wire
  • Rated Voltage: 400V
  • Current Rating: 24A
  • Rated Impulse Voltage: 4KV
  • Strip Length: 12 - 13mm
  • Type: 2-Pole Push Wire Connector
  • Connector Size:
    • Length: 13.1mm
    • Width: 9.2mm
    • Height: 19.5mm

Product Manual:

  • Strip the wire approximately 12-13mm and insert 2-4 wires (0.75-2.5mm² solid wires) into the connector until fully secured.
  • Wire Removal Method:
  • Cut approximately 15-30mm from the front of the terminal wire, then use pliers to gently twist and pull the wire out from the connector.

Package Included:

  • 1 x 2-Pole Push Wire Connector
